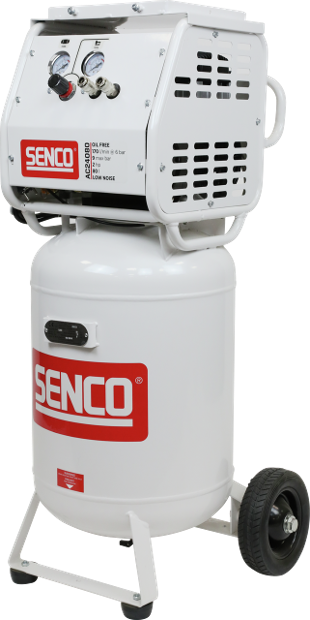

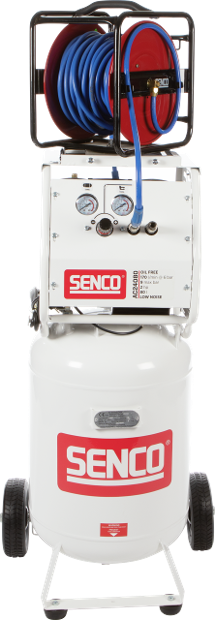

AC24080, low noise compressor

Article number AFN0034

tap image to zoom

Description

The compact trolley compressor AC24080 is the ideal oilless low noise compressor for all your construction jobs. The vertical position of the tank makes it possible to place this compressor easily in the professionnal's truck with a minimized space required. Transportation to the job site is also easy thanks to the wheels and a convenient handle. Its reduced noise level (72 dB) procures a quiet ambiance at work.

Applications

Paneling, Roofing, Sheathing, Siding, Upholstering, Wood construction

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Article number
AFN0034
GTIN
7331274017252
Type
AC24080

Technical specifications

Oil free
Yes
Low noise
Yes
Frequency
50 Hz
Electrical plug type
Continental
Nominal power
1.5 kW
Sound pressure level
72.0 Lpa
Sound power level
84.0 Lwa
Motor Sce class
S3 Intermittent service
Voltage
230 V
Rotations per minute
1400 RPM
Nominal power
2.0 HP
Tank Capacity
80.0 l
Max output pressure
9.0 bar
Air displacement
240 l/m
Airflow at 6 bar
170 l/min
Number of airoutlets
2
Air outlet socket type
Universal coupler

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
465 x 545 x 1210 mm
Includes case
No

Logistical specifications

Net weight
72.7 kg
