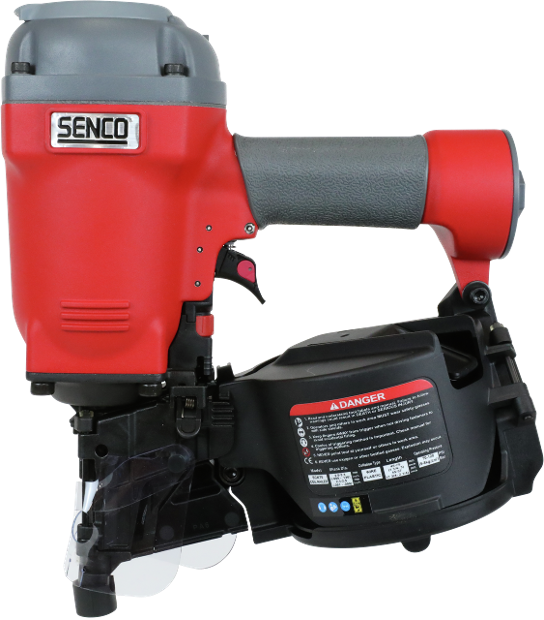

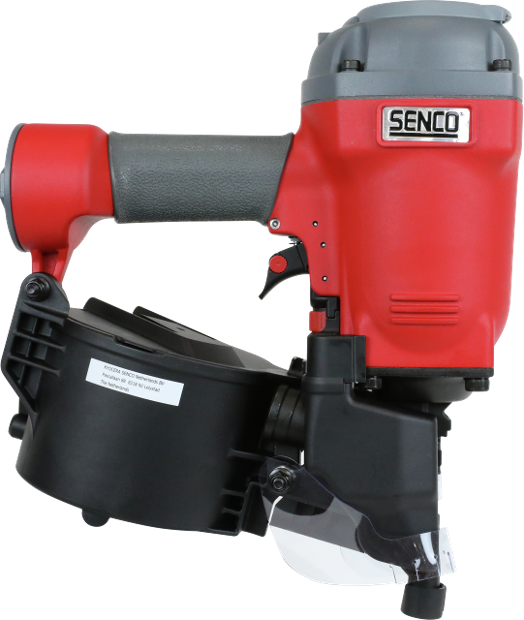

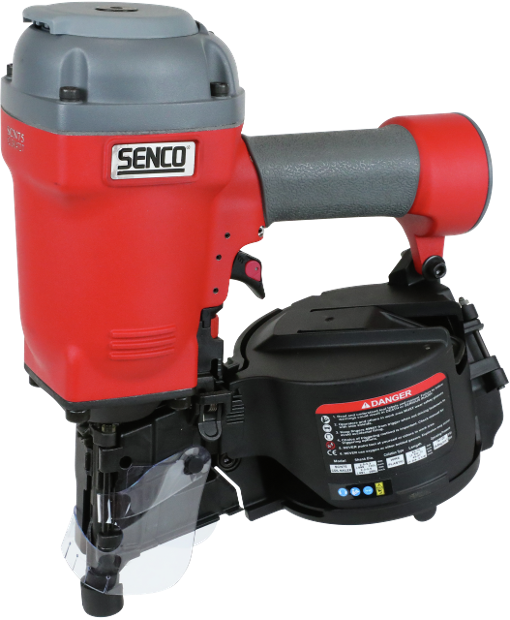

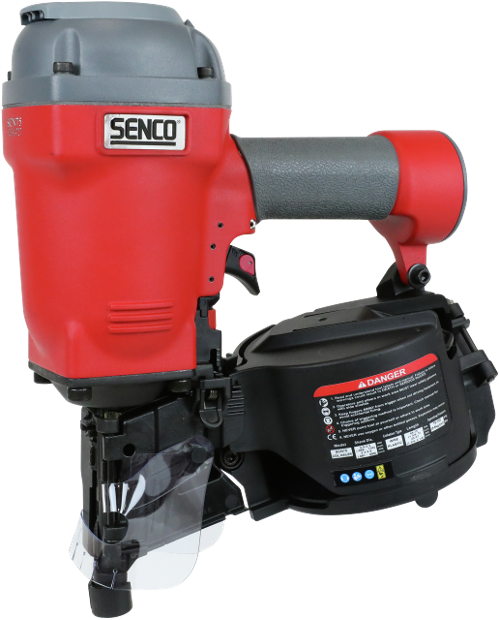

SCN75, coilnailer, dual

Article number SCN75

tap image to zoom

Description

The pneumatic SCN75 coilnailer runs both wire and plastic collated nials ranging from 2,5 to 3,3mm in diameter and 45 to 75mm in length. Being part of the Pro Serie, this coilnailer can span a wide range of applications from framing and siding to sub-flooring and decks.

Features & Benefits

  • Selectable actuation switch
  • Plastic or wire feed system
  • Tool-free depth-of-drive

Applications

Framing, Sheathing, Siding, Decking, Subfloor, Pallets and crates

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
Pro
Article number
SCN75
GTIN
8715274015064
Type
SCN75

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 16mm
Firing mode
Selectable
Magazine capacity
300
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
168.0 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
92.3 Lpa
Sound power level
100.3 Lwa
Vibration level
3.42 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
45 - 75 mm
Smooth shank nail diameter
2,5 - 3,3 mm
Ring shank type
Ring shank
Ring shank nail length
45 - 75 mm
Ring shank nail diameter
2,5 - 2,5 mm
Screw shank type
Screw shank
Screw shank nail length
45 - 75 mm
Screw shank nail diameter
2,5 - 3,1 mm
Pitch min
8.0 mm
Pitch max
8.0 mm
Max outerdiamer coil
121 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
132 x 315 x 282 mm
Includes case
No

Logistical specifications

Net weight
2.82 kg
