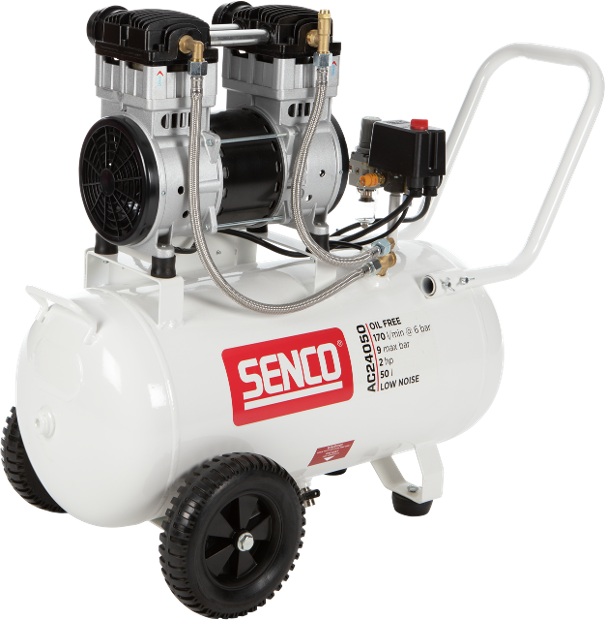

AC24050, low noise compressor

Article number AFN0033

tap image to zoom

Description

Low noise 9-bar compressor equipped with a whole new 2HP engine, our latest addition to the Low noise family is a good choice for the heavier applications! It has a 50 liters tank in horizontal position, which procures a good stability.

Applications

Paneling, Roofing, Sheathing, Siding, Upholstering, Wood construction

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Article number
AFN0033
GTIN
7331274017078
Type
AC24050

Technical specifications

Oil free
Yes
Low noise
Yes
Frequency
50 Hz
Electrical plug type
Continental
Nominal power
1.5 kW
Sound pressure level
72.0 Lpa
Sound power level
84.0 Lwa
Motor Sce class
S3 Intermittent service
Voltage
230 V
Rotations per minute
1400 RPM
Nominal power
2.0 HP
Tank Capacity
50.0 l
Max output pressure
9.0 bar
Air displacement
240 l/m
Airflow at 6 bar
170 l/min
Number of airoutlets
1
Air outlet socket type
Universal coupler

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
410 x 730 x 730 mm
Includes case
No

Logistical specifications

Net weight
40.5 kg
