AC19306BL-EU, air compressor 230V
Article number AFN0036EU
tap image to zoom
Description

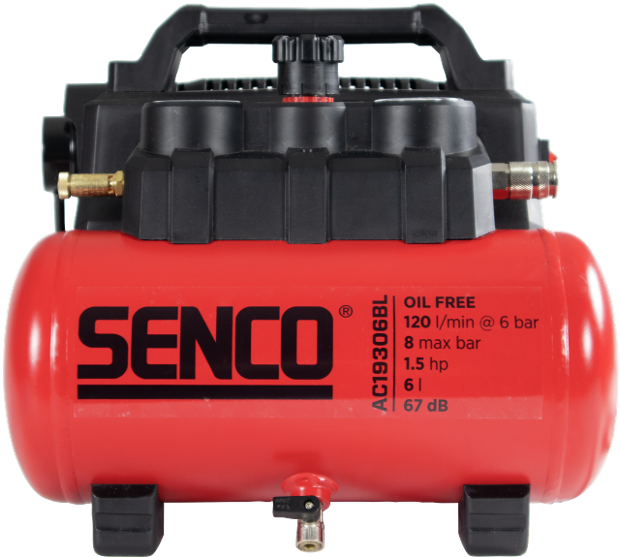

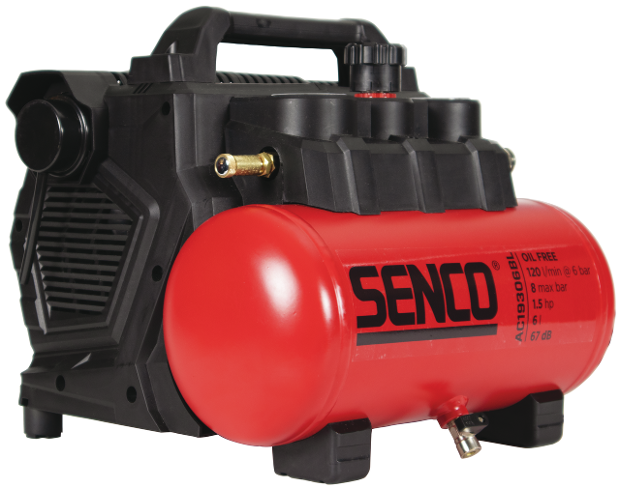

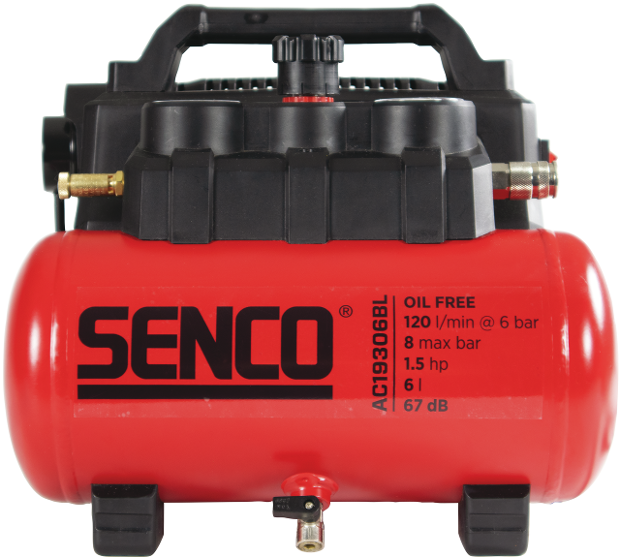

The compact and portable SENCO compressor is your best friend on the job site. Easy to transport and producing an important volume of compresssed air, it offers a wide range of possible applications.
Applications
Sheathing, Siding, Upholstering, Wood construction
Specifications
Identificaton
- Article number
- AFN0036EU
- GTIN
- 8715274259482
- Type
- AC19306
Technical specifications
- Oil free
- Yes
- Low noise
- Yes
- Operating temperature
- 5 - 40 °C
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Nominal power
- 1.1 kW
- Sound pressure level
- 67.0 Lpa
- Sound power level
- 77.0 Lwa
- Motor Sce class
- S3 Intermittent service
- Motor Sce class %
- 66
- Voltage
- 230 V
- Rotations per minute
- 2800 RPM
- Nominal power
- 1.5 HP
- Tank Capacity
- 6.0 l
- Max output pressure
- 8.0 bar
- Air displacement
- 193 l/m
- Airflow at 6 bar
- 120 l/min
- Number of airoutlets
- 1
- Air outlet socket type
- Universal coupler
Non-technical specifications
- Warranty
- 1 year
- Dimensions (DxWxH)
- 375 x 385 x 365 mm
- Includes case
- No
Logistical specifications
- Net weight
- 15.8 kg
Downloads
- Manual SENCO compressors PDF 2 Mb
- Manual SENCO compressors PDF 2 Mb
- Part chart SENCO AFN0036 PDF 532 Kb
- Part chart SENCO AC19306BL PDF 532 Kb
- AFN0036EU_en_CommercialProductSheet_1.1_1727355487533 PDF 1 Mb
