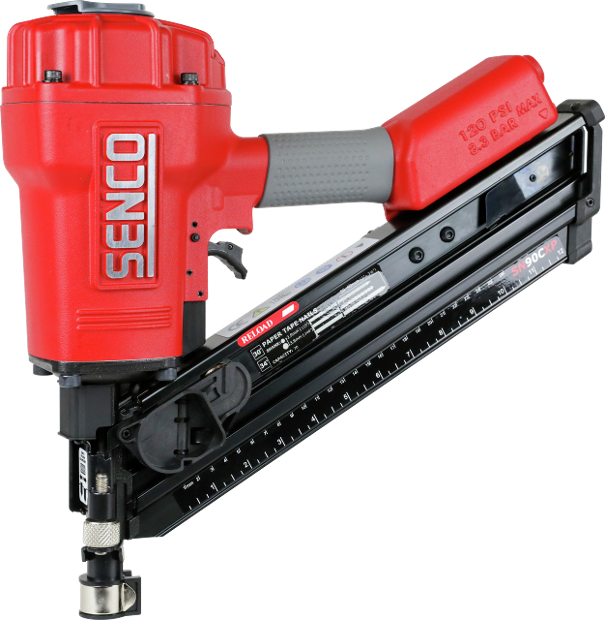

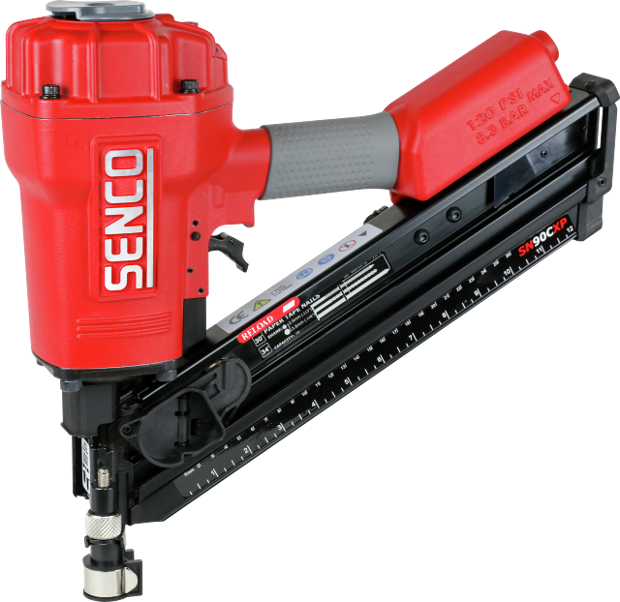

SN90CXP, CH framing nailer, dual

Article number 2H2001N

tap image to zoom

Description

The SCN90CXP clipped head framing nailer is designed with the Pro in mind. XtremePro models have improved internal and external features for improved durability and comfort. This compact framer is easy to handle, and easy on the arm. The 34 degree short, in-line magazine, provides excellent maneuverability and line of sight. Drives a wide range of fasteners from 50 till 90mm to handle virtually any job.

Features & Benefits

  • Aggressive toenail safety
  • Dry fire lockout
  • 360° Adjustable Exhaust
  • Rafter hook
  • Selectable Trigger
  • Comfort grip
  • Tool-free depth-of-drive

Applications

Framing, Subfloor, Sheathing, Decking, Siding, Fencing, Pallets and crates

Find dealer Find dealer Request information Request information

Specifications

Identificaton

Serie
XtremePro
Article number
2H2001N
GTIN
741474305467
Type
SN90CXP

Technical specifications

Collation angle
34 °
Oil free
No
Operating temperature
-18 - 49 °C
Collation type
Paper collated
Firing mode
Dual
Magazine capacity
70
Air inlet size
3/8" female
Air consumption at 60 shots/minute
283.2 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
96.0 Lpa
Sound power level
101.0 Lwa
Vibration level
4 m/s2

Fastener specifications

Type of nail
CH stripnails
Smooth shank type
Smooth shank
Smooth shank nail length
50 - 90 mm
Smooth shank nail diameter
2,87 - 3,8 mm
Ring shank type
Ring shank
Ring shank nail length
50 - 75 mm
Ring shank nail diameter
2,87 - 2,87 mm
Screw shank type
Screw shank
Screw shank nail length
50 - 75 mm
Screw shank nail diameter
2,87 - 3,1 mm

Non-technical specifications

Warranty
5 years
Dimensions (DxWxH)
106 x 384 x 337 mm
Includes case
Yes

Logistical specifications

Net weight
3.62 kg
