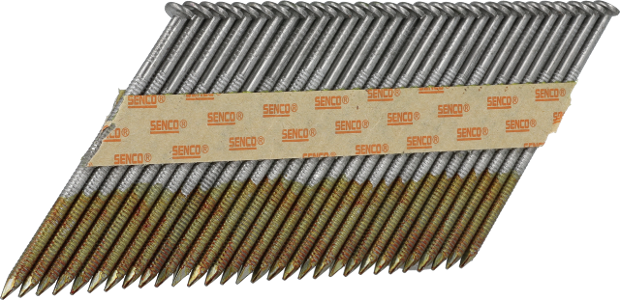

GE ring stripnail 2,87x75mm

Specifications

Identificaton

Article number

GE57APBKR

GTIN

8715274028606

Technical specifications

Collation angle

34 °

Collation type

Paper collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Bright basic standard tensile

Coating

Sencoted

Application environment

Indoor

Type of nail

CH stripnails

Nail head type

Clipped head

Nail shank type

Ring shank

Point type

Diamond

Pointangle

40 °

Amount fasteners on strip/coil

29 - 31

Nail length

75.0 mm

Nail diameter

2.87 mm

CE Specifications

Characteristic head pull through parameter

20.3 N/mm²

CE fastener type

Round cross-section ring shank nail

DOP No

GE57APBKR

Service class

1

Coating type

Coating type 3

Coating length

50.0 mm

Head cross sectional area

30.0 mm

Threaded/profiled length

55.0 mm

Characteristic yield moment

2525.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

7.5 N/mm²

Non-technical specifications

Package quantity

2000

Logistical specifications

Net weight

7.98 kg
