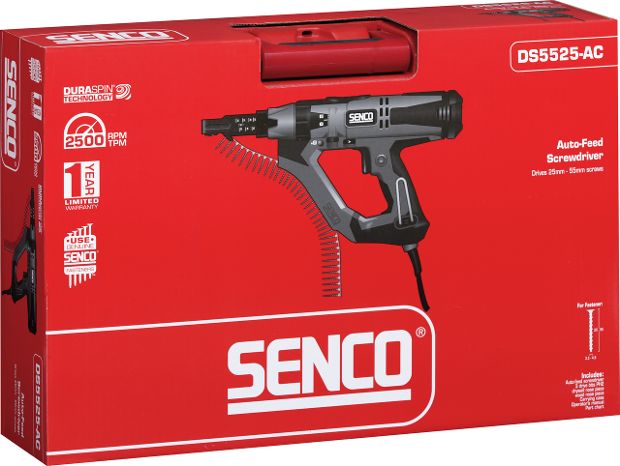

DS5525-AC, DuraSpin screwdriver
Article number 7U2001N
tap image to zoom
Description
High torque motor is a great fit for general contractors that need the versatility to do a wide variety of jobs. Added torque provides plenty of power for composite decks, cement board, or applications where dense engineered materials are needed. Ideal for applications where drill point screws are used to cut through heavy steel. (13-25mm screws require special nosepiece)
Features & Benefits
- Adjustable depth-of-drive with depth lock
- Tool free adjustable nose-piece
- Feed on return
- Adjustable belt hook
- Reverse switch
- High torque motor
- Heavy duty power cord
Applications
Decking, Drywall, Decking soft wood, Sheathing, Wood-to-wood applications, Pallets and crates, Subfloor
Specifications
Identificaton
- Serie
- DuraSpin
- Article number
- 7U2001N
- GTIN
- 8718035005120
- Type
- DS5525-AC
Technical specifications
- Bit length
- 174 mm
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Torque
- 11 Nm
- Sound pressure level
- 84.0 Lpa
- Sound power level
- 95.0 Lwa
- Vibration level
- 0.3 m/s2
- Voltage
- 230 V
- Rotations per minute
- 2500 RPM
Fastener specifications
- Screw length
- 25 - 55 mm
- Screw diameter
- 3,5 - 5,5 mm
Non-technical specifications
- Warranty
- 1 year
- Dimensions (DxWxH)
- 82 x 415 x 245 mm
- Includes case
- Yes
Logistical specifications
- Net weight
- 2.56 kg
