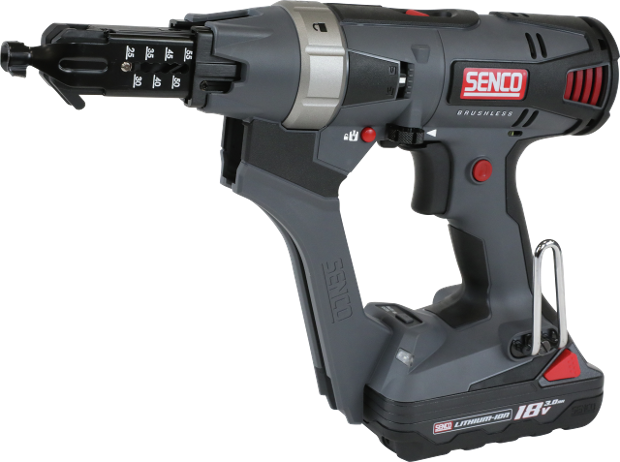

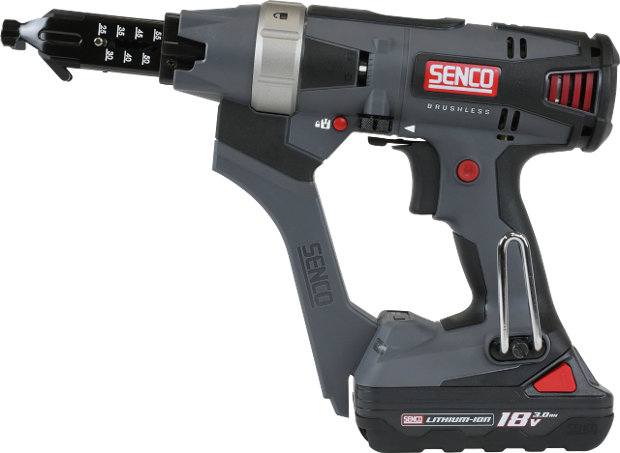

DS525-18V EU High Speed 55mm
Article number 10A2001N
tap image to zoom
Description
Powered by an efficient brushless motor, this high speed auto-feed screwdriver, a quick release feed system with our patented corner fit technology. The DS525 also features feed on return - the next screw is aligned with the bit for better line of sight and easier, more accurate screw placement.
Features & Benefits
- Adjustable depth-of-drive with depth lock
- Detachable feed system
- Tool free adjustable nose-piece
- Brushless motor
- Feed on return
- Adjustable belt hook
- Reverse switch
- High torque motor
Applications

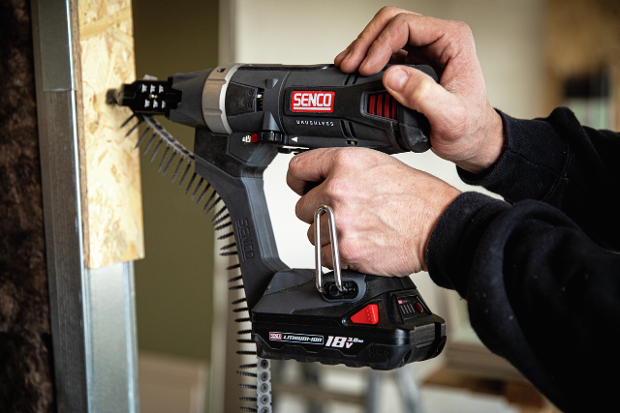

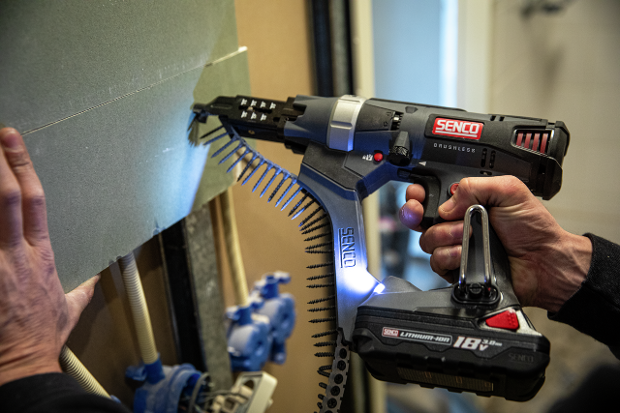

Decking, Drywall, Decking soft wood, Sheathing, Wood-to-wood applications, Pallets and crates, Subfloor
Specifications
Identificaton
- Serie
- DuraSpin
- Article number
- 10A2001N
- GTIN
- 8715274245225
- Type
- DS525-18V
Technical specifications
- Bit length
- 174 mm
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Battery type
- Li-Ion
- Battery voltage
- 18 V
- Battery ampere rating
- 3.0 Ah
- Battery power
- 54.0 W
- Recharge time 80%
- 15 min
- Recharge time 100%
- 45 min
- Shots per charge
- 2500
- Number of batteries
- 2
- Torque
- 5 Nm
- Sound pressure level
- 63.5 Lpa
- Sound power level
- 74.5 Lwa
- Vibration level
- 1.1 m/s2
- Voltage
- 230 V
- Rotations per minute
- 5000 RPM
Fastener specifications
- Screw length
- 25 - 55 mm
- Screw diameter
- 3,5 - 5,5 mm
Non-technical specifications
- Warranty
- 5 years
- Dimensions (DxWxH)
- 85 x 372 x 243 mm

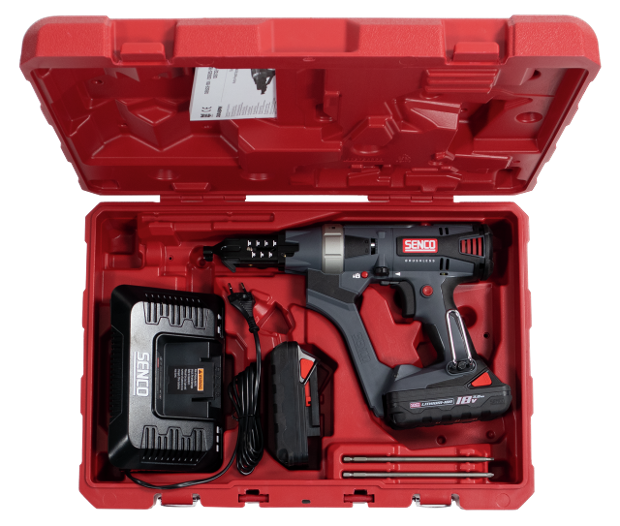

- Includes case
- Yes
Logistical specifications
- Net weight
- 2.48 kg
Related Fasteners
Downloads
- Manual SENCO DuraSpin 2.5 PDF 16 Mb
- Part chart SENCO DuraSpin DS525 PDF 836 Kb
- 10A2001N_en_CommercialProductSheet_1.4_1731106234604 PDF 1 Mb
