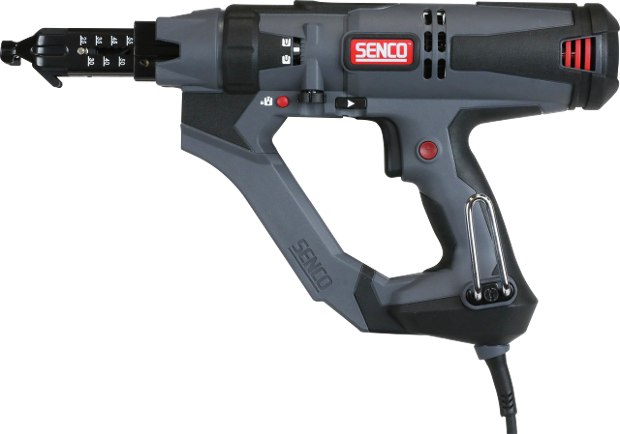

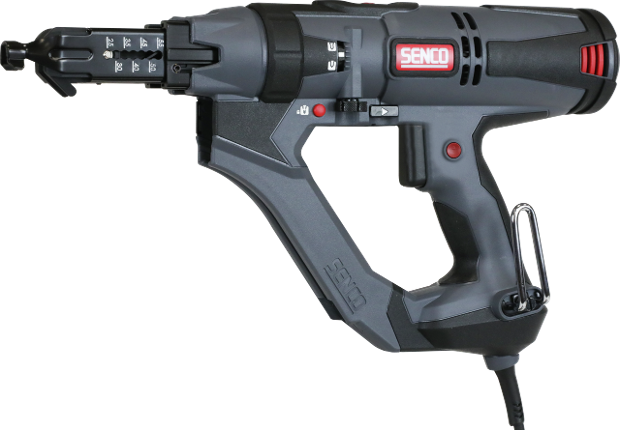

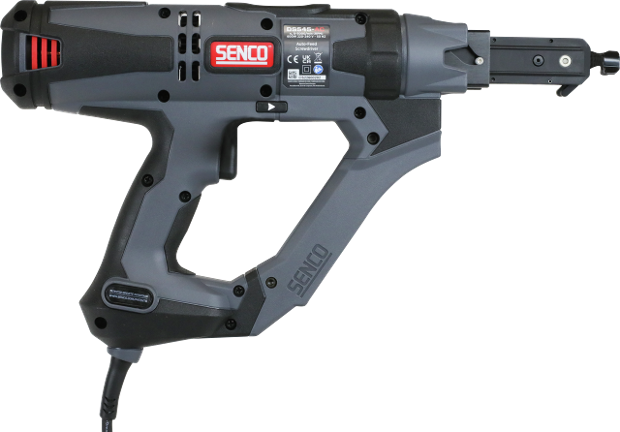

DS545-AC, DuraSpin screwdriver
Article number 10D2001N
tap image to zoom
Description
Blazing fast speed in a compact well balanced package provides the ultimate in performance for the most demanding professional drywall installer. Includes Senco's patent pending corner-fit indexing technology that allows placement of screws into tight places unreachable by any other auto-feed screwdrivers on the market. With reduced force to fire you can drive screws all day with less fatigue. (13-25mm screws require special nose piece)
Features & Benefits
- Feed on return
- Adjustable belt hook
- Adjustable depth-of-drive with depth lock
- Tool free adjustable nose-piece
- Reverse switch
- Heavy duty power cord
- Screw Guide
- Bit release
- Feather trigger
Applications
Drywall, Metal framing, Pallets and crates, Sheathing, Subfloor, Wood-to-wood applications, Exterior hard fiber to wood or light steel, Drywall to light steel, Drywall to wood
Specifications
Identificaton
- Serie
- DuraSpin
- Article number
- 10D2001N
- GTIN
- 8715274261553
- Type
- DS5550-AC
Technical specifications
- Operating temperature
- 4 - 40 °C
- Collation type
- Plastic collated
- Bit length
- 174 mm
- Firing mode
- Variable with lock
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Torque
- 7 Nm
- Sound pressure level
- 84.0 Lpa
- Sound power level
- 95.0 Lwa
- Vibration level
- 0.3 m/s2
- Voltage
- 230 V
- Rotations per minute
- 5000 RPM
Fastener specifications
- Screw length
- 25 - 55 mm
- Screw diameter
- 3.5 - 5.5 mm
Non-technical specifications
- Warranty
- 5 years
- Package contents
- Manual, Parts Chart, Driver bit SQ2, Driver bit PH2
- Dimensions (DxWxH)
- 82 x 415 x 245 mm
- Includes case
- No
Related Fasteners
Downloads
- Manual SENCO DuraSpin corded PDF 16 Mb
- Part chart SENCO Duraspin Part chart PDF 1 Mb
- 10D2001N_en_CommercialProductSheet_1.1_1722907702652 PDF 1 Mb
