SLP20XP GLN-T, glazing brad nailer 1,2mm (AX) 7mm
Article number WCE0485
tap image to zoom
Description

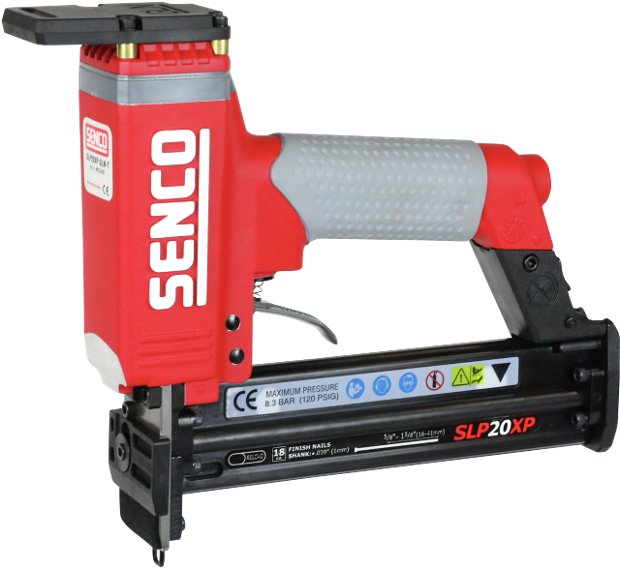

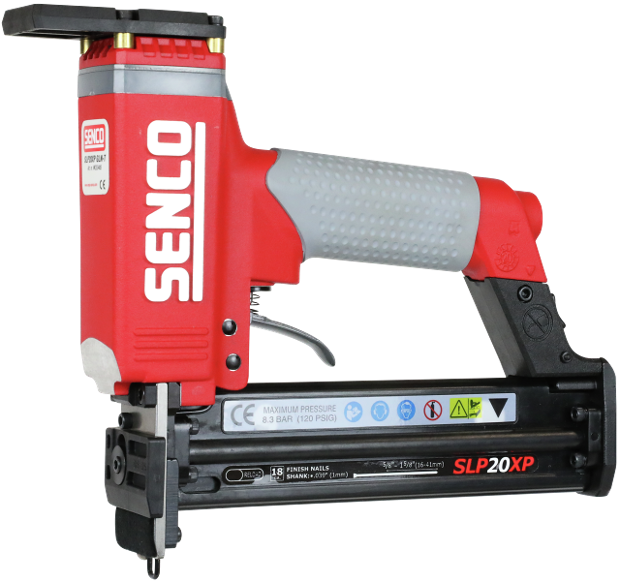

The SLP20XP GLN is an air powered glazing brad nailer for fastening indoor glass retaining strips. The 1,2mm (AX) nail is curved and drives covered in the nutch, ranging in length from 25mm to 38mm. Place your nails with an interspace of 30cm for the best results. Drive the last one on the strip at max. 8 till 10.5 cm to the end.
Features & Benefits
- Comfort grip
- Reload indicator
- Oil-free
Applications
Doors and windows
Specifications
Identificaton
- Serie
- XtremePro
- Article number
- WCE0485
- GTIN
- 8715274044927
- Type
- SLP20XP-GLN
Technical specifications
- Collation angle
- 0 °
- Oil free
- Yes
- Operating temperature
- -18 - 49 °C
- Collation type
- Glue collated
- Firing mode
- Restrictive
- Magazine capacity
- 110
- Air inlet size
- 1/4" female
- Air consumption at 60 shots/minute
- 54.0 l/m
- Operating pressure
- 4.8 - 8.3 bar
- Sound pressure level
- 79.0 Lpa
- Sound power level
- 88.0 Lwa
- Vibration level
- under declaraton limit m/s2
- Gauge
- 18
Fastener specifications
- Type of nail
- Brads
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 25 - 38 mm
- Smooth shank nail diameter
- 1,2 - 1,2 mm
Non-technical specifications
- Warranty
- 5 years
- Dimensions (DxWxH)
- 50 x 275 x 225 mm
- Includes case
- Yes
Logistical specifications
- Net weight
- 1.17 kg
Related Fasteners
Downloads
- Manual SENCO SLP20XP PDF 25 Mb
- Manual SENCO Stripnailers PDF 24 Mb
- Part chart SENCO brad nailer SLP20XP-GLN, for glazing PDF 421 Kb
- WCE0485_en_CommercialProductSheet_1.2_1721816250163 PDF 2 Mb
