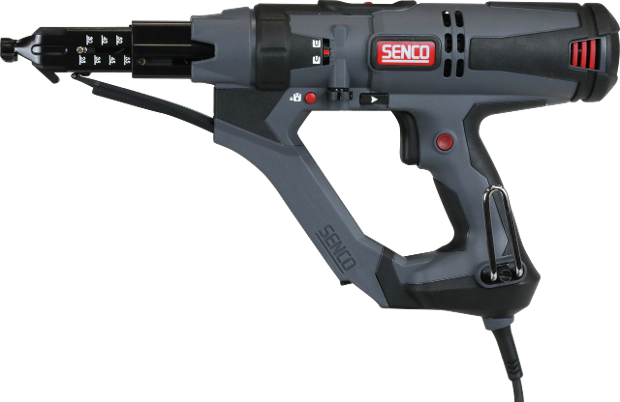

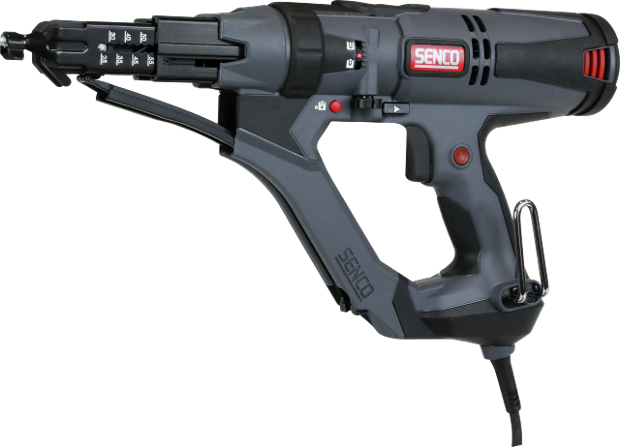

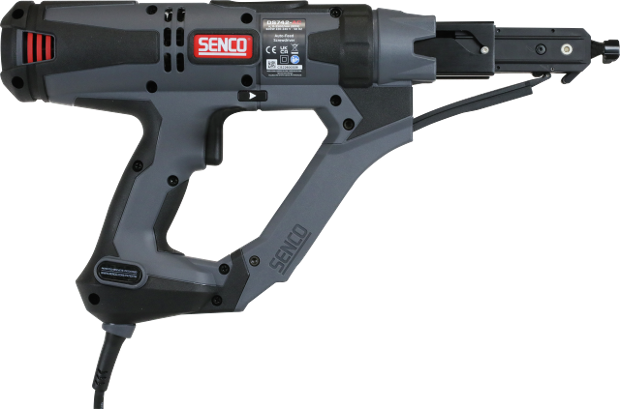

DS742-AC, DuraSpin screwdriver
Article number 10F2001N
tap image to zoom
Description
With the capability to drive up to 75mm screws this Auto-Feed screwdriver is perfect for the professional general contractor driving a wide variety of screws into many different applications. Drive 25mm screws into drywall on one job and easily switch over to 75mm screws into decking or stair treads on another. Combining the versatility of our patent pending corner-fit feed system and corded all day power you can count on this tool to drive into almost any application.
Features & Benefits
- High torque motor
- Feed on return
- Adjustable belt hook
- Adjustable depth-of-drive with depth lock
- Tool-free depth-of-drive
- Tool free adjustable nose-piece
- Reverse switch
- Heavy duty power cord
- Screw Guide
- Bit release
Applications
Decking, Decking soft wood, Drywall, Metal framing, Pallets and crates, Sheathing, Subfloor, Wood-to-wood applications, Exterior hard fiber to wood or light steel, Insulation sheating, Composite timbers, Drywall to heavy steel, Drywall to light steel, Drywall to wood
Specifications
Identificaton
- Serie
- DuraSpin
- Article number
- 10F2001N
- GTIN
- 8715274261577
- Type
- DS742-AC
Technical specifications
- Operating temperature
- 4 - 40 °C
- Collation type
- Plastic collated
- Bit length
- 195 mm
- Firing mode
- Variable with lock
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Torque
- 11 Nm
- Sound pressure level
- 84.0 Lpa
- Sound power level
- 95.0 Lwa
- Vibration level
- 0.3 m/s2
- Voltage
- 230 V
- Rotations per minute
- 2500 RPM
Fastener specifications
- Screw length
- 25 - 75 mm
- Screw diameter
- 3.5 - 5.5 mm
Non-technical specifications
- Warranty
- 5 years
- Package contents
- Manual, Parts Chart, Driver bit SQ2, Driver bit PH2
- Dimensions (DxWxH)
- 82 x 436 x 245 mm
- Includes case
- No
Related Fasteners
Downloads
- Manual SENCO DuraSpin corded PDF 16 Mb
- Part chart SENCO Duraspin DS742-AC PDF 1 Mb
- 10F2001N_en_CommercialProductSheet_1.1_1722907475563 PDF 1 Mb
