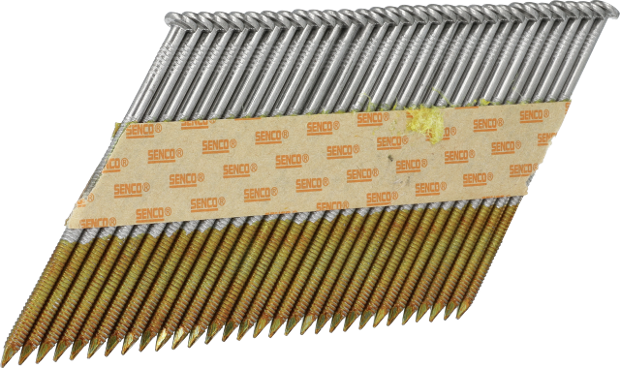

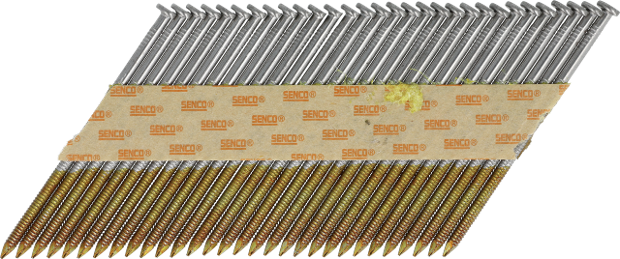

HE ring stripnail 3,1x90mm
Article number HE59APBKR
tap image to zoom
Description
3,1mm ring stripnail, bright basic, Sencoted
Applications
Framing, Pallets and crates, Subfloor, Trusses
Specifications
Identificaton
- Article number
- HE59APBKR
- GTIN
- 8715274028613
Technical specifications
- Collation angle
- 34 °
- Collation type
- Paper collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Bright basic standard tensile
- Coating
- Sencoted
- Application environment
- Indoor
- Type of nail
- CH stripnails
- Nail head type
- Clipped head
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 40 °
- Amount fasteners on strip/coil
- 29 - 31
- Nail length
- 90.0 mm
- Nail diameter
- 3.1 mm
CE Specifications
- Characteristic head pull through parameter
- 20.72 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- HE59APBKR
- Service class
- 1
- Coating type
- Coating type 3
- Coating length
- 60.0 mm
- Head cross sectional area
- 30.0 mm
- Threaded/profiled length
- 62.0 mm
- Characteristic yield moment
- 2936.0 Nmm
- Characteristic tensile strength
- 633.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 7.6 N/mm²
Non-technical specifications
- Package quantity
- 2000
Logistical specifications
- Net weight
- 10.53 kg
