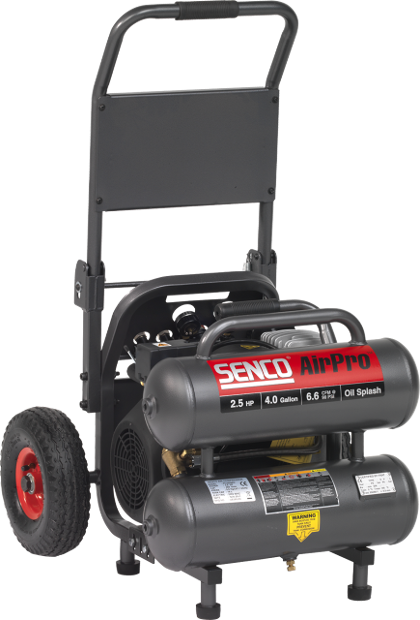

PC2225, maxi compressor
Article number PC2225EU
tap image to zoom
Description
The PC2225 is a heavy duty 2.5HP framing compressor ideal for on site use because of the big tank wheels.
Applications
Paneling, Roofing, Sheathing, Siding, Upholstering, Wood construction
Specifications
Identificaton
- Article number
- PC2225EU
- GTIN
- 8715274002248
- Type
- PC2225
Technical specifications
- Oil free
- No
- Low noise
- No
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Nominal power
- 1.9 kW
- Sound pressure level
- 88.0 Lpa
- Sound power level
- 90.0 Lwa
- Voltage
- 230 V
- Rotations per minute
- 2850 RPM
- Nominal power
- 2.5 HP
- Tank Capacity
- 16.0 l
- Max output pressure
- 9.0 bar
- Air displacement
- 268 l/m
- Airflow at 6 bar
- 192 l/min
- Number of airoutlets
- 2
- Air outlet socket type
- Universal coupler
Non-technical specifications
- Warranty
- 1 year
- Dimensions (DxWxH)
- 650 x 560 x 530 mm
- Includes case
- No
Logistical specifications
- Net weight
- 28.6 kg
Downloads
- Manual SENCO PC2225EU PDF 22 Mb
- Part chart SENCO PC2225EU PDF 11 Mb
- PC2225EU_en_CommercialProductSheet_1.1_1727308871714 PDF 1 Mb
