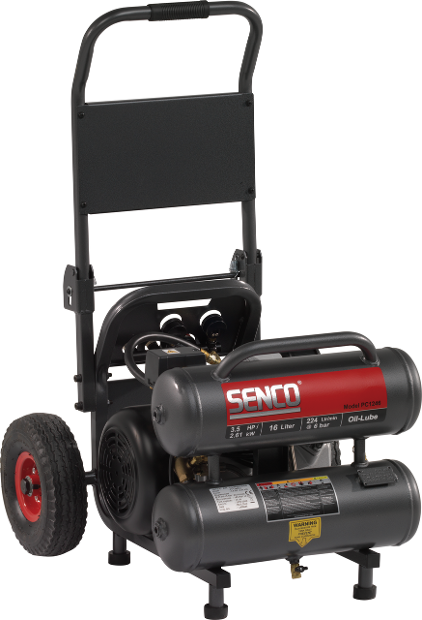

PC1246, maxi compressor
Article number PC1246EU
tap image to zoom
Description
The PC1246 is a rugged site compressor, with big wheels helping to move around on site and a solid steel over frame providing added protection. With a powerful 3.5hp motor system this compressor can provide a range topping air displacement of 350L/min
Applications
Paneling, Roofing, Sheathing, Siding, Upholstering, Wood construction
Specifications
Identificaton
- Article number
- PC1246EU
- GTIN
- 8715274034201
- Type
- PC1246
Technical specifications
- Oil free
- No
- Low noise
- No
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Nominal power
- 2.6 kW
- Sound pressure level
- 90.0 Lpa
- Sound power level
- 93.0 Lwa
- Voltage
- 230 V
- Rotations per minute
- 2850 RPM
- Nominal power
- 3.5 HP
- Tank Capacity
- 16.0 l
- Max output pressure
- 10.0 bar
- Air displacement
- 268 l/m
- Airflow at 6 bar
- 224 l/min
- Number of airoutlets
- 2
- Air outlet socket type
- Universal coupler
Non-technical specifications
- Warranty
- 1 year
- Dimensions (DxWxH)
- 508 x 504 x 605 mm
- Includes case
- No
Logistical specifications
- Net weight
- 57.0 kg
Downloads
- Part chart SENCO PC1246 PDF 173 Kb
- PC1246EU_en_CommercialProductSheet_1.1_1727177572900 PDF 1 Mb
